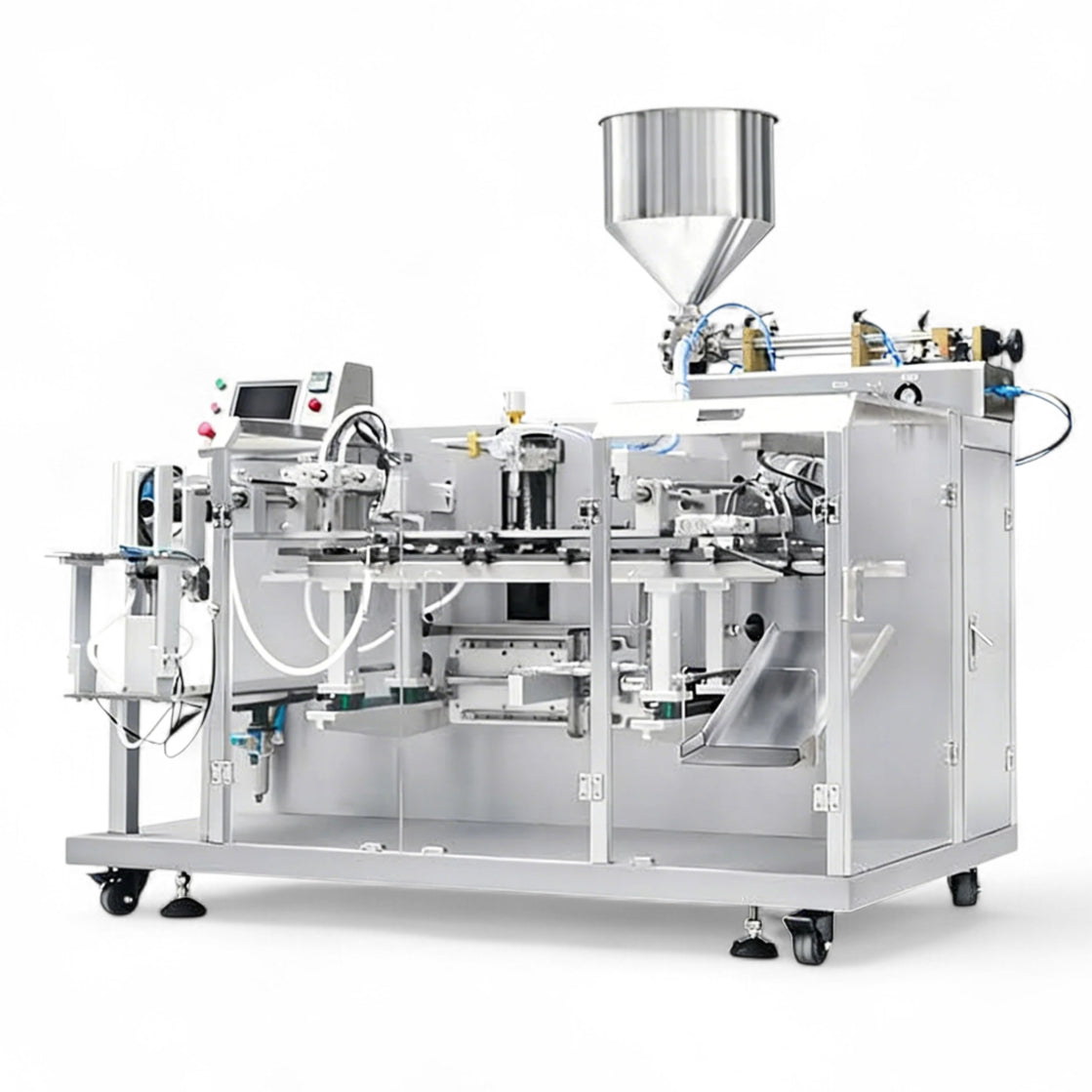

A fully automatic system that feeds, fills and seals pre-made pouches in one continuous operation. Built for products that pour, flow or pump: sauces, creams, gels, liquid detergents and ready-to-drink beverages.

Pre-made pouches, not formed film

This is a doypack machine, which means it works from pre-made pouches rather than forming bags from a roll of film the way a VFFS does. That distinction decides a lot. Pre-made pouches cost more per unit, but they arrive already printed, already shaped, and with zippers or spouts fitted. For a retail product where the pack is part of the brand, that is usually the right trade.

If you would rather form bags from film, look at our 4-head granule VFFS with vacuum sealing instead.

What it does in one pass

• Automatic pouch feeding
• Precision filling for liquids and pastes
• Heat sealing for a leak-proof closure
• Continuous running with minimal operator input

Specifications

• Capacity: 20 to 40 bags per minute
• Power: 4 kW
• Voltage: 380V
• Air consumption: 0.7 m3/min
• Bag width: 3.94 to 8.66 inches
• Bag length: 4.72 to 13.78 inches
• Fill volume: 200 to 1000 g
• Bag types: doypack stand-up, 4-side sealed, zipper

Suits

• Thick sauces and dressings
• Creams, gels and lotions
• Liquid detergents
• Ready-to-drink beverages

Check this before you specify it

The machine runs on 380V and needs a compressed air supply at 0.7 cubic metres per minute. If you do not already have air plumbed to the line, budget for a compressor alongside the machine rather than discovering it on installation day.

Coding the pouch

Pre-made pouches usually arrive printed but without variable data. Dates, lot codes and batch numbers still have to be applied, and thermal transfer overprinting handles that cleanly on pouch film. We supply the Linx TT 500 and Linx TT 750 and stock the matching ribbons.
