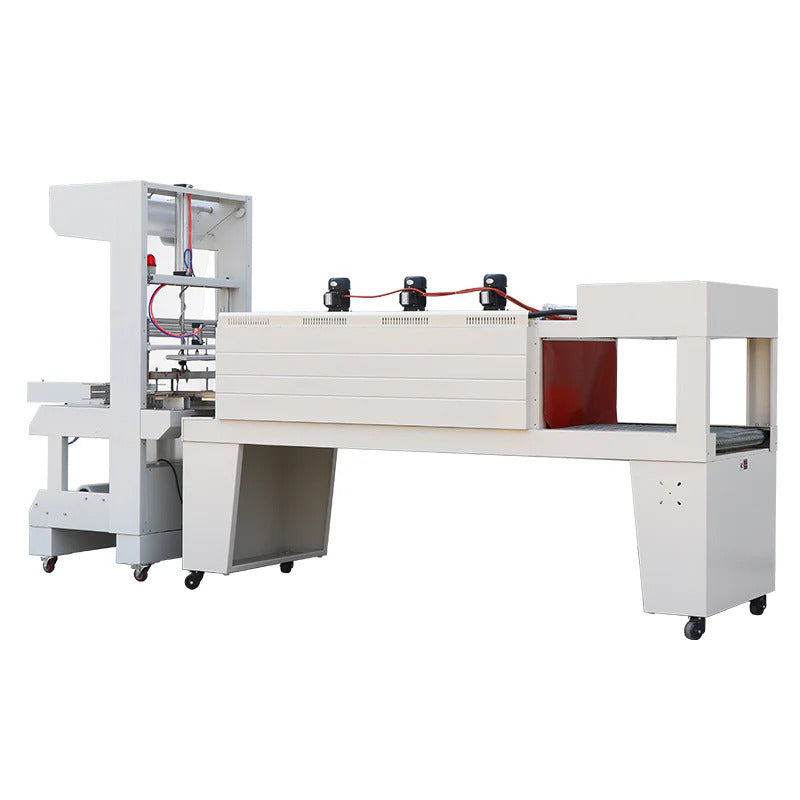

A two-part packaging system that wraps shrink film around product and then passes it through a heat tunnel to shrink it tight. Built for bottles, cans, boxes and multipacks that need a clean, retail-ready finish.

Two machines, one process

The sleeve wrapper forms film around the product and seals it. The shrink tunnel then applies controlled heat so the film contracts to the product's shape. Both stages matter equally: a good wrap through a badly set tunnel gives you wrinkles and dog-ears, and no amount of tunnel heat rescues a poor wrap.

Sleeve wrapper specifications

• Voltage: 220V, 50-60Hz
• Power: 2.2 kW
• Packing speed: 0 to 6 packs per minute
• Payload: 44.09 lbs
• Film roll width: up to 25.59in
• Film thickness: 0.00118in to 0.00984in
• Applicable film: POF, PE, PP
• Machine size: 78.74in x 35.43in x 74.80in
• Machine weight: approximately 529 lbs

Shrink tunnel specifications

• Voltage: 220V, 50-60Hz
• Power: 24 kW
• Tunnel size: 70.87in x 27.56in x 19.69in
• Conveying speed: 0 to 10 m/min
• Payload: under 110.23 lbs
• Suitable film: PVC, POF, PE, PP
• Machine size: 81.89in x 38.58in x 62.20in
• Machine weight: approximately 529 lbs

Check your power supply before you commit

The shrink tunnel draws 24 kW. That is more than ten times the wrapper feeding it, and considerably more than most equipment on a small line. A heat tunnel is almost entirely element load and it draws continuously rather than in bursts, so confirm your supply can carry it before specifying the system.

Film choice

The wrapper runs POF, PE and PP. The tunnel additionally handles PVC. POF is the usual choice where clarity and food contact matter. PVC shrinks at a lower temperature, which saves energy, but it has been falling out of favour on environmental grounds. Tell us what you are wrapping and we will suggest the film.

Wrapping a whole pack, or just the neck?

This system wraps an entire product or multipack. If you only need a tamper-evident capsule over a bottle closure, as on wine and spirits, that is our bottle neck capsule shrink machine instead.

For foil sealing under the cap, see the induction sealer. Full range in Sealing Machines.

Product size range

Send us the dimensions of what you are wrapping, including whether it is a single item or a multipack, and we will confirm the configuration and the size range it will handle. Email info@uptimepackaging.com.
