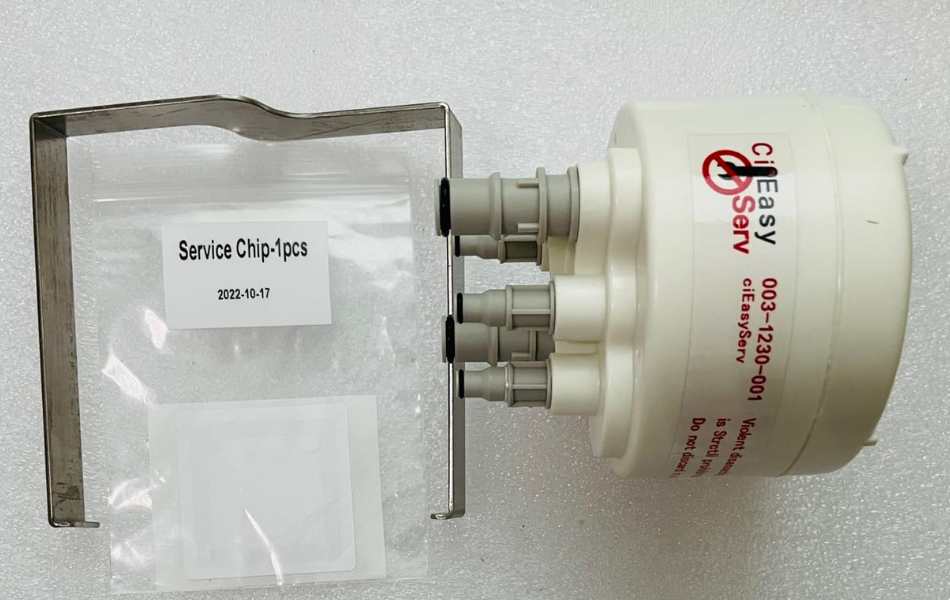

Compatible filter service module replacing part number 003-1230-001 on ci5000 Series continuous inkjet printers.

One sealed cartridge, not an open fluid circuit

Like the original, this module consolidates every serviceable fluid filter into a single sealed cartridge with leak-free quick-connect fittings. A scheduled service that once meant opening the fluid circuit now takes under a minute, with no tools and no spilled ink.

Built to the interval your printer expects

Manufactured to the same service interval as the original and supplied with a programmed RFID tag, so the printer's Change Wizard recognises the module, accepts the swap and resets the service counter exactly as it would with an OEM part.

No technician required

The printer flags the change at 300 hours remaining and repeats the warning daily until serviced. Once the new module is scanned, the on-screen Change Wizard walks the operator through each step. A trained line operator can complete the swap without waiting on a distributor appointment.

Sealed means clean

Because every filter sits inside one enclosed body, there are no individual fittings to loosen, cross-thread or weep afterwards. The most common cause of post-service ink leaks is the service itself, and a sealed module removes that failure mode entirely.

Specifications

• Replaces part number: 003-1230-001
• Type: Sealed multi-filter service module
• RFID tag: Included and pre-programmed
• Service interval: 8,000 hours or 18 months, per OEM specification
• Installation: Tool-free, quick-connect fittings
• Change time: Under 1 minute
• Condition: New
